Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.
Pulley 48L075/3Wf For 1610 T/L Bush (T48L075F)
Pulley 48L075/3Wf For 1610 T/L Bush (T48L075F)
| Part No. | 7801-148 |
| Code | T48L075F |
| Material | Steel |

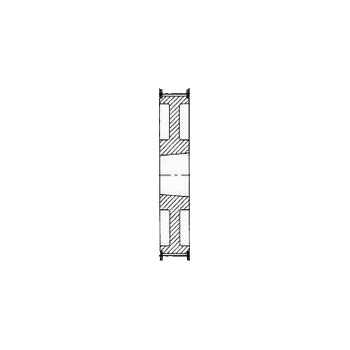

| Type | 6F |
| No. Teeth | 48 |
| Bush | 1610 |
| Dp | 146 |
| De | 145 |
| Df | 150 |
| Dm | 92 |
| Di | 120 |
| F | 25 |
| S | |
| R | |
| No. flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
