Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.

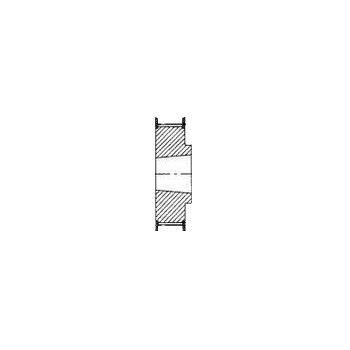

Pulley 40L050 For 1610 T/L Bush (T40L050F)
Pulley 40L050 For 1610 T/L Bush (T40L050F)
| Part No. | 7801-144 |
| Code | T40L050F |
| Material | Steel |
| Type | 2F |
| No. Teeth | 40 |
| Bush | 1610 |
| Dp | 121.28 |
| De | 120.51 |
| Df | 128 |
| Dm | 97 |
| Di | _ |
| F | 19 |
| S | 25 |
| R | 6 |
| No. flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
