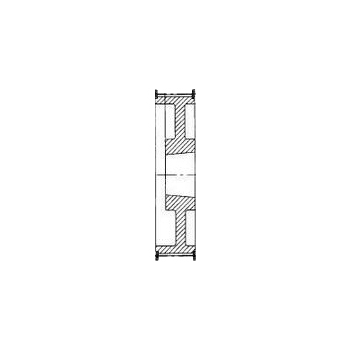

Timing Pulleys H150 (0.5" / 12.7mm pitch) for 38.1mm (1.5") wide belt. Taper bore for use with our taper bushes. Manufactured in steel or Cast Iron with steel flanges.
Pulley 40H150/5Wf For 1610 T/L Bush (T40H150F)
Pulley 40H150/5Wf For 1610 T/L Bush (T40H150F)
| Part No. | 7800-956 |
| Code | T40H150F |
| Material | Steel |
| Type | 10F |
| No.teeth | 40 |
| Bush | 1610 |
| Dp | 161.7 |
| De | 160.33 |
| Df | 168 |
| Dm | 92 |
| Di | 138 |
| F | 45 |
| S | 25 |
| R | 20 |
| No. flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
