Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.
Pulley 32L100/5F For 1210 T/L Bush (T32L100F)
Pulley 32L100/5F For 1210 T/L Bush (T32L100F)
| Part No. | 7801-140 |
| Code | T32L100F |
| Material | Steel |

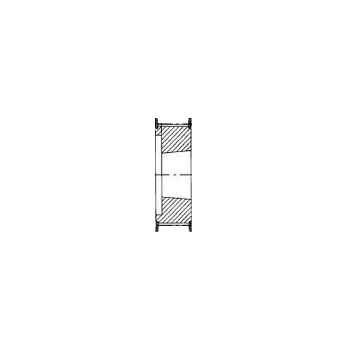

| Type | 9F |
| No. Teeth | 1210 |
| Bush | 32 |
| Dp | 97 |
| De | 96.3 |
| Df | 102 |
| Dm | |
| Di | 75 |
| F | 32 |
| S | 25 |
| R | 7 |
| No. flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
