Timing Pulleys H200 (0.5" / 12.7mm pitch) for 50.8mm (2") wide belt. Taper bore for use with our taper bushes. Manufactured in steel or Cast Iron with steel flanges.

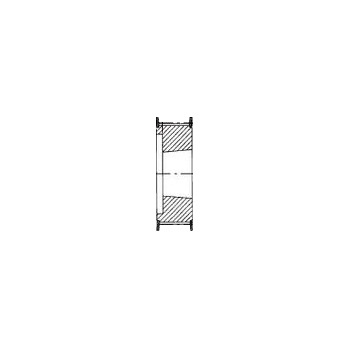

Pulley 32H200/5F Fof 2012 T/L Bush (T32H200F)
Pulley 32H200/5F Fof 2012 T/L Bush (T32H200F)
Part No. | 7800-949 |
Code | T32H200F |
Material | Steel |
Type | 9F |
No.teeth | 32 |
Bush | 2012 |
Dp | 129.36 |
De | 127.99 |
Df | 135 |
Dm | |
Di | 106 |
F | 58 |
S | 32 |
R | 26 |
No. flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
