Timing Pulleys H300 (0.5" / 12.7mm pitch) for 76.2mm (3") wide belt. Taper bore for use with our taper bushes. Manufactured in steel or Cast Iron with steel flanges.
Pulley 30H300/4F For 2012 T/L Bush (T30H300F)
Pulley 30H300/4F For 2012 T/L Bush (T30H300F)
| Part No. | 7800-946 |
| Code | T30H300F |
| Material | Steel |

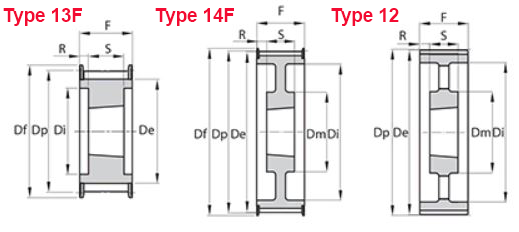

| Type | 13F |
| No.teeth | 2012 |
| Bush | 30 |
| Dp | 121.28 |
| De | 119.9 |
| Df | 128 |
| Dm | |
| Di | 98 |
| F | 84 |
| S | 32 |
| R | 26 |
| No. flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
