Timing Pulleys H100 (0.5" / 12.7mm pitch) for 25.4mm (1") wide belt. Taper bore for use with our taper bushes. Manufactured in steel or Cast Iron with steel flanges.

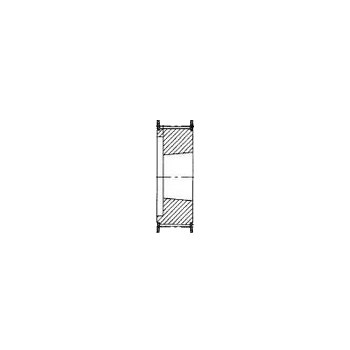

Pulley 26H100/5F For 1610 T/L Bush (T26H100F)
Pulley 26H100/5F For 1610 T/L Bush (T26H100F)
| Part No. | 7801-125 |
| Code | T26H100F |
| Material | Steel |

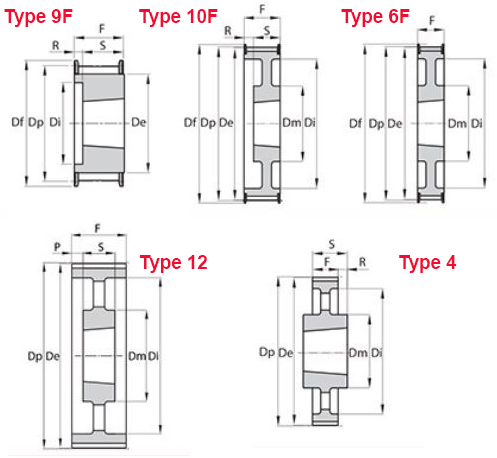

| Type | 9F |
| No.teeth | 26 |
| Bush | 1610 |
| Dp | 105.11 |
| De | 103.73 |
| Df | 112 |
| Dm | |
| Di | 82 |
| F | 32 |
| S | 25 |
| R | 7 |
| No. flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
