Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.
Pulley 22L075/3F F0R 1108 T/L Bush (T22L075F)
Pulley 22L075/3F F0R 1108 T/L Bush (T22L075F)
| Part No. | 7801-114 |
| Code | T22L075F |
| Material | Steel |

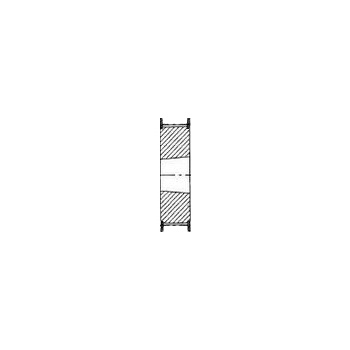

| Type | 5F |
| No. Teeth | 22 |
| Bush | 1108 |
| Dp | 67 |
| De | 65.9 |
| Df | 75 |
| Dm | |
| Di | |
| F | 25 |
| S | |
| R | |
| No. flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
