Timing Pulleys H100 (0.5" / 12.7mm pitch) for 25.4mm (1") wide belt. Taper bore for use with our taper bushes. Manufactured in steel or Cast Iron with steel flanges.
Pulley 22H100/5F For 1210 T/L Bush (T22H100F)
Pulley 22H100/5F For 1210 T/L Bush (T22H100F)
| Part No. | 7800-916 |
| Code | T22H100F |
| Material | Steel |

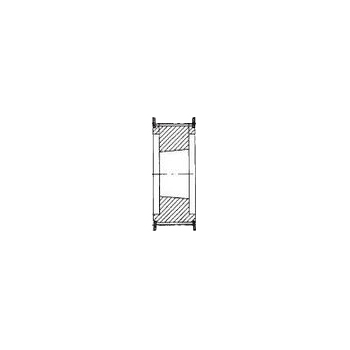

| Type | 9F |
| No.teeth | 22 |
| Bush | 1210 |
| Dp | 88.94 |
| De | 87.56 |
| Df | 94 |
| Dm | |
| Di | 67 |
| F | 32 |
| S | 25 |
| R | 7 |
| No. flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
