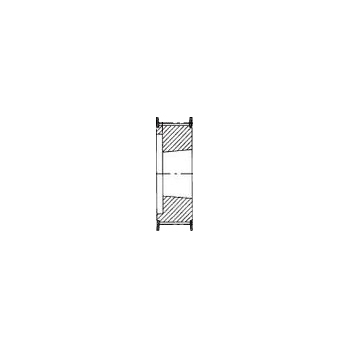

Timing Pulleys H100 (0.5" / 12.7mm pitch) for 25.4mm (1") wide belt. Taper bore for use with our taper bushes. Manufactured in steel or Cast Iron with steel flanges.
Pulley 20H100/5F For 1210 T/L Bush (T20H100F)
Pulley 20H100/5F For 1210 T/L Bush (T20H100F)
| Part No. | 7800-908 |
| Code | T20H100F |
| Material | Steel |
| Type | 9F |
| No.teeth | 20 |
| Bush | 1210 |
| Dp | 80.55 |
| De | 79.48 |
| Df | 87 |
| Dm | |
| Di | 60 |
| F | 31 |
| S | 25 |
| R | 6 |
| No. flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
