Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.
Pulley 19L100/5F For 1108 T/L Bush (T19L100F)
Pulley 19L100/5F For 1108 T/L Bush (T19L100F)
| Part No. | 7801-106 |
| Code | T19L100F |
| Material | Steel |

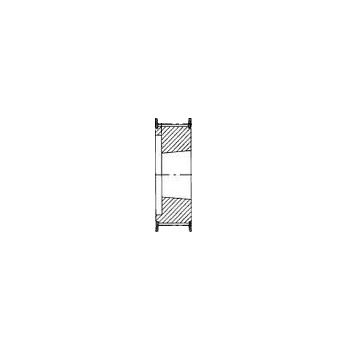

| Type | 9F |
| No. Teeth | 1108 |
| Bush | 19 |
| Dp | 58 |
| De | 56.8 |
| Df | 64 |
| Dm | |
| Di | 38 |
| F | 31 |
| S | 22 |
| R | 9 |
| No. flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
