Timing Pulleys L100 (0.375" / 9.525mm pitch) for 25.4mm (1") wide belt. Pilot bore, manufactured in steel or Cast Iron with steel flanges.
Pulley 16L100F, With Pilot Bore (P16L100F)
Pulley 16L100F, With Pilot Bore (P16L100F)
| Part No. | 7801-018 |
| Code | P16L100F |
| Material | Steel |

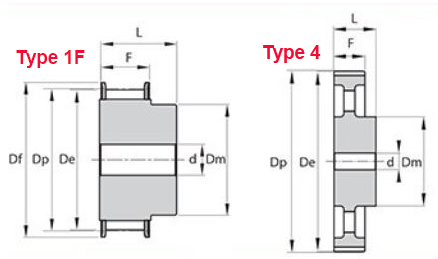

| Type | 1F |
| No. Teeth | 16 |
| Dp | 49 |
| De | 48 |
| Df | 54 |
| Dm | 36 |
| F | 31.8 |
| L | 45 |
| Bore | 11 |
| No. Flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
