Module 1.5 to 4.0 have a steel core. All dimensions in mm. 30% Glass filled Nylon 6

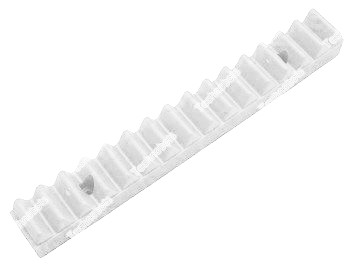

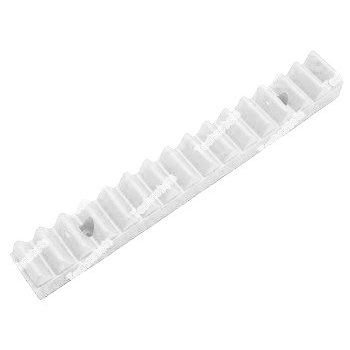

Plastic Mod 2 Rack 20x20x500mm (PR20/20/.50)
Plastic Mod 2 Rack 20x20x500mm (PR20/20/.50)
| Part No. | 7700-133 |
| Code | PR20/20/.50 |
| Pitch module | 2 |
| Type | S |
| Width B | 20 |
| Height A | 20 |
| Height to pitch line hp | 18 |
| Length L | 500 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
