Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with no insert or grub screw. Polycarbonate - Glass Filled.

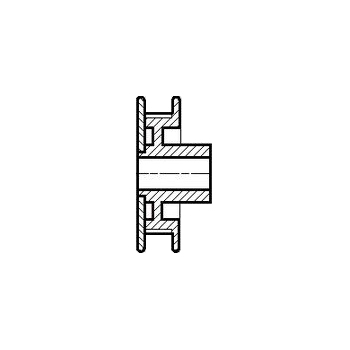

Plastic 22MXL025 Type B 6mm Bore (PP22MXL025M)
Plastic 22MXL025 Type B 6mm Bore (PP22MXL025M)
| Part No. | 7800-622 |
| Code | PP22MXL025M |
| Type | B |
| No.teeth | 22 |
| Dp | 14.2 |
| De | 13.72 |
| Df | 19 |
| Dm | 13 |
| Fw | 8 |
| L | 17.5 |
| Bore(d) | 6 |
| Pw | 11.2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
