Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with no insert or grub screw. Polycarbonate - Glass Filled.
Plastic 20MXL025 Type A 6mm Bore (PP20MXL025M)
Plastic 20MXL025 Type A 6mm Bore (PP20MXL025M)
| Part No. | 7800-618 |
| Code | PP20MXL025M |

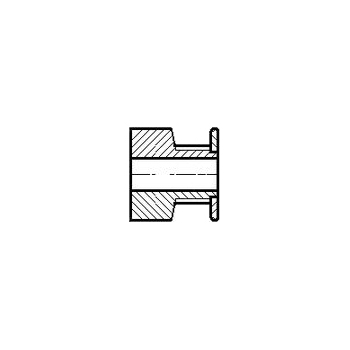

| Type | A |
| No.teeth | 20 |
| Dp | 12.9 |
| De | 12.43 |
| Df | 17 |
| Dm | 13 |
| Fw | 8 |
| L | 17.5 |
| Bore(d) | 6 |
| Pw | 11.2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
