Metric Spur Gears in moulded 30% Glass-filled Nylon 6. . Bore unmachined typically 0.5-1mm undersize. Standard tolerances, unless. otherwise stated ±0.25mm. Max recommended working temperature 130°C. All dimensions in mm. Moulded Nylon 6 (PA6), 30% Glass filled. 20° P.A
Nylon 6 Spur Gear Mod 2.5 15T, With Hub (PS25/15B)
Nylon 6 Spur Gear Mod 2.5 15T, With Hub (PS25/15B)

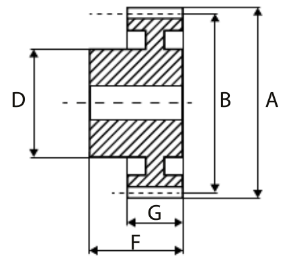

| Part No. | 7701-852 |
| Code | PS25/15B |
| No. of Teeth | 15 |
| Pitch Ø B | 37.5 |
| Pre-bore (rough) | 10 |
| Hub/Boss Ø D | 30 |
| Outside Ø A | 42.5 |
| O/A Width F | 40 |
| Face Width G | 25 |
