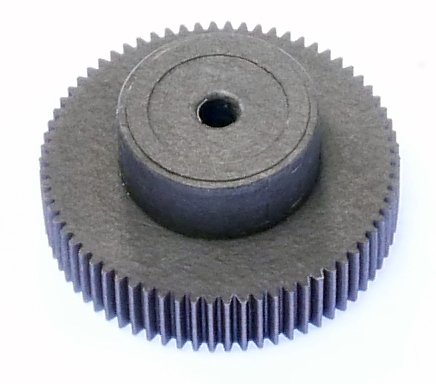

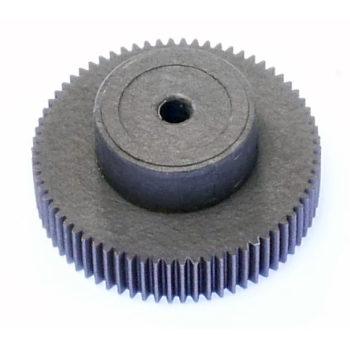

Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm.
| Part No. | 7701-386 |
| Code | PS05/70B |
| No. of Teeth | 70 |
| Torque (Nm) | 1.91 |
| Pitch Ø Dp | 35 |
| Inner Dia Da | - |
| Bore Ø D1 | 4 |
| Hub/Boss Ø Dm | 20 |
| Outside Ø De | 36 |
| O/A Width F | 16 |
| Face Width G | 8 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
