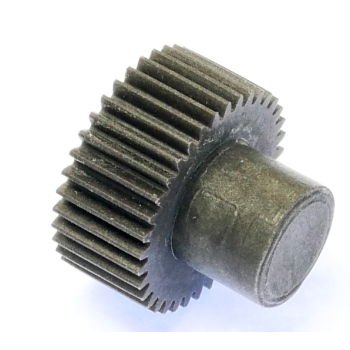

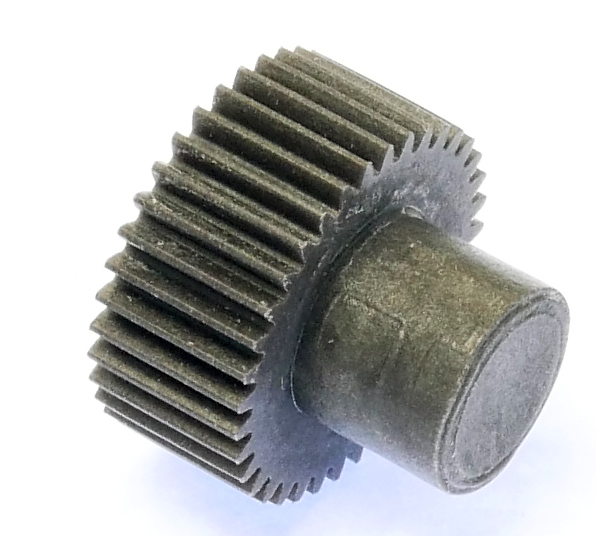

Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm.
| Part No. | 7701-379 |
| Code | PS05/36B |
| No. of Teeth | 36 |
| Torque (Nm) | 0.98 |
| Pitch Ø Dp | 18 |
| Inner Dia Da | - |
| Bore Ø D1 | No |
| Hub/Boss Ø Dm | 10 |
| Outside Ø De | 19 |
| O/A Width F | 16 |
| Face Width G | 8 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
