Standard tolerances, unless otherwise stated ±0.010 in. Shaft axis to intersect within ±0.001?. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.002?. Bore tolerance as below. 20° pressure angle. Supplied in pairs. All dimensions in inches. 1:1 Ratio

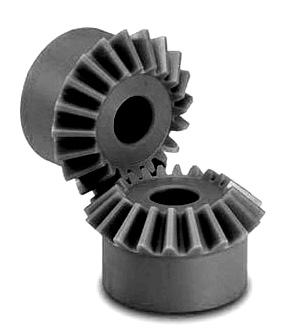

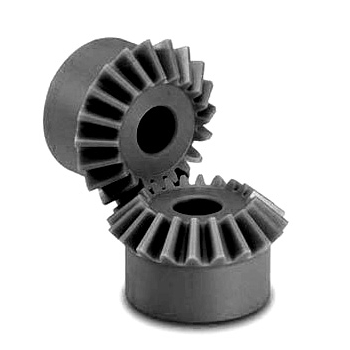

Nylon 6 Mitre Gear DP48 15T 1:1 (PBMDP48/15)
Nylon 6 Mitre Gear DP48 15T 1:1 (PBMDP48/15)
| Part No. | 7708-208 |
| Code | PBMDP48/15 |
| DP | 48 |
| No. Teeth | 15 |
| dp (in) | 0.313 |
| de (in) | 0.35 |
| dm (in) | 0.25 |
| Bore +0.001 -0.002 | 0.125 |
| F (in) | 0.088 |
| Lm (in) | 0.125 |
| A (in) | 0.219 |
| V+A (ins) | 0.312 |
| S | 0 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
