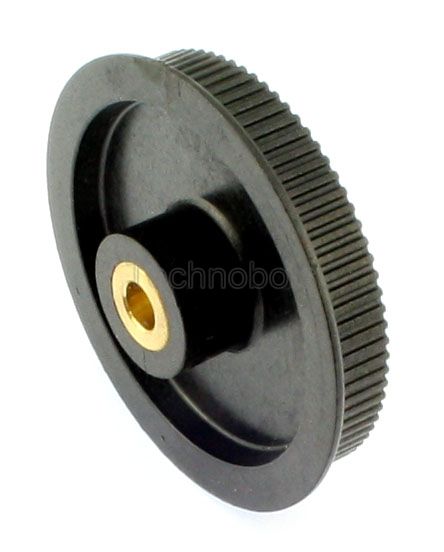

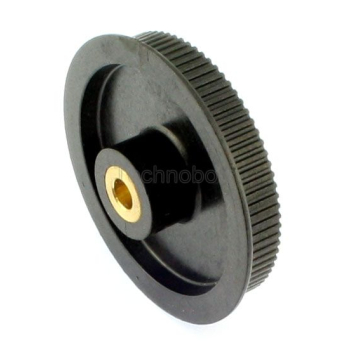

Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with metric insert with grub screw. Polycarbonate - Glass Filled.
MXL025 Plastic Timing Pulley 90 Teeth Brass Ins
MXL025 Plastic Timing Pulley 90 Teeth Brass Ins
| Part No. | 4630-090 |
| Code | PP90MXL025MI |
| Insert | Brass |
| Type | C |
| No. Teeth | 90 |
| Dp | 58.22 |
| De | 57.71 |
| Df | 63 |
| Dm | 17 |
| Fw | 8 |
| L | 17.5 |
| Bore (d) | 6 |
| Pw | 11 |
| GrubScrew Gs | 1 x M3 |
| K | 3 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
