Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with metric insert with grub screw. Polycarbonate - Glass Filled.

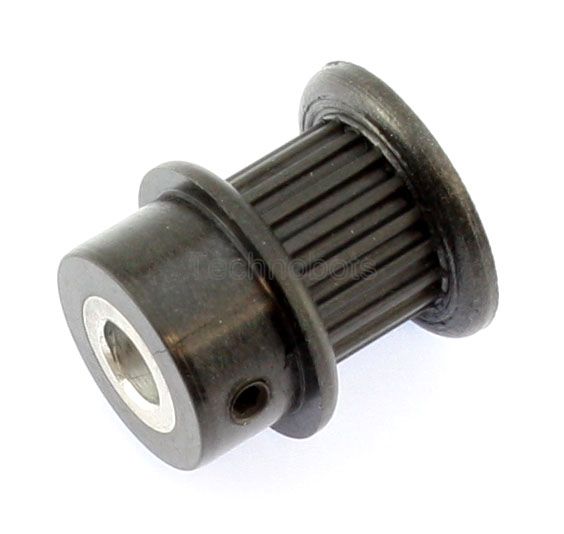

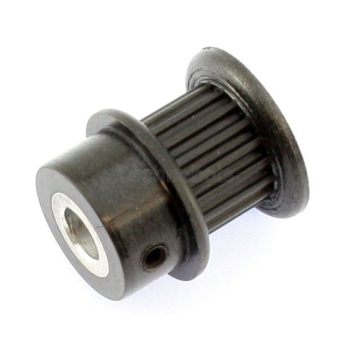

MXL025 Plastic Timing Pulley 18 Teeth Alu Ins
MXL025 Plastic Timing Pulley 18 Teeth Alu Ins
| Part No. | 4630-018 |
| Code | PP18MXL025MI |
| Insert | Aluminium |
| Type | A |
| No. Teeth | 18 |
| Dp | 11.63 |
| De | 11.13 |
| Df | 16 |
| Dm | 13 |
| Fw | 8 |
| L | 17.5 |
| Bore (d) | 5 |
| Pw | 11 |
| GrubScrew Gs | 1 x M3 |
| K | 3 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
