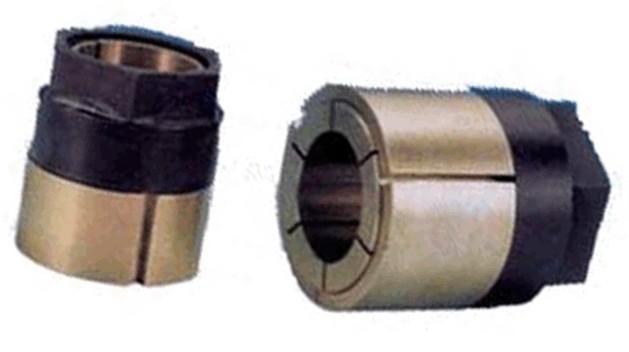

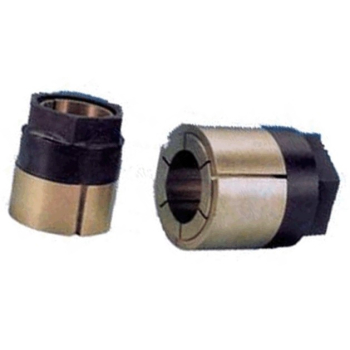

Translock® Mini Keyless Locking Bushes in Metric Series
Mini Translock Bushes 15x25.5mm (TRMINI15X25.5)
Mini Translock Bushes 15x25.5mm (TRMINI15X25.5)
| Part No. | 7933-114 |
| Code | TRMINI15X25.5 |
| Bore d (mm) | 15 |
| Outside diameter D (mm) | 25.5 |
| L1 | 28.5 |
| L2 | 16 |
| W | 22 |
| B | 5 |
| Torque (Nm) | 45.1 |
| Thrust (N) | 4510 |
| Hub pressure (N/cm2) | 1300 |
| Nut torque (Nm) | 23.4 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
