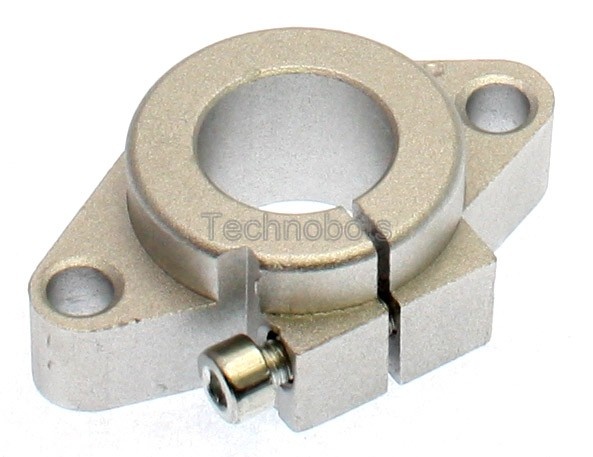

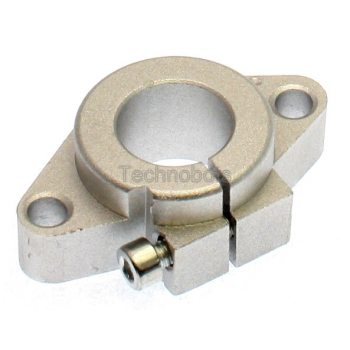

A flange style aluminium mount for round guide rails of 16mm diameter as typically used for CNC linear bearings.

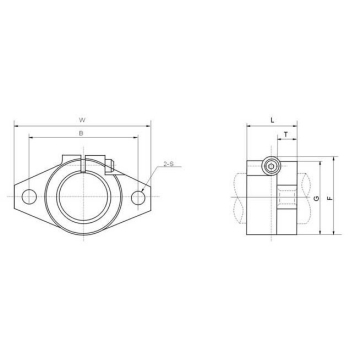

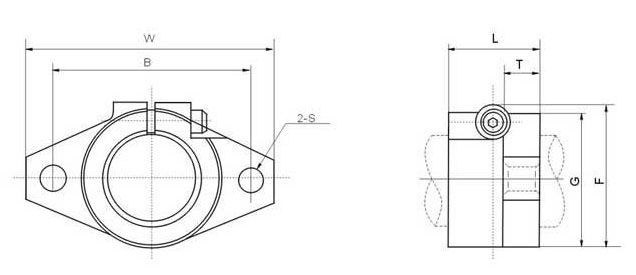

See image for the dimensions drawing:
- Shaft Diameter: 16mm
- W: 50mm
- L: 16mm
- T: 8mm
- F: 31mm
- G: 28mm
- B: 40mm
- S: 5.5mm
- Clamping Bolt: M4
- Mounting Bolt (Not Supplied): M5
