Gears and Sprockets supply High Torque Drive (HTD) timing pulleys in pilot bore type and taper lock bush type.The material used for smaller pulleys is Aluminium, medium sizes are in Steel, larger sizes in Cast Iron, all featuring flanges made from Steel. HTD, CXP and CXA belts are all designed to run on these pulleys. This HTD pulley has a pilot bore.

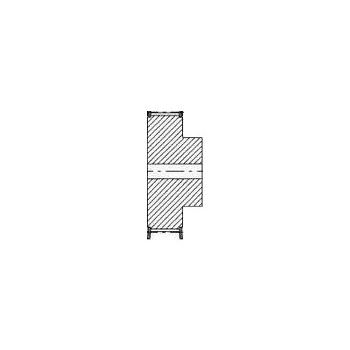

HTD Pulley 44-14M-40F, With Pilot Bore (HP44-14M-40F)
HTD Pulley 44-14M-40F, With Pilot Bore (HP44-14M-40F)
| Part No. | 7800-160 |
| Code | HP44-14M-40F |
| Material | Steel |
| No. teeth | 44 |
| Type | 1F |
| Dp | 196.08 |
| De | 193.28 |
| Df | 211 |
| Dm | 120 |
| F | 54 |
| L | 69 |
| Bore (d) | 24 |
| No. flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
