Hostaform Spur Gear Mod 2 16T, With Hub (WPS20/16B)

£6.52
(£7.82 UK, incl VAT)
7701-639
21 g
1-3 Working Days
+
Add to wish list
Metric Spur Gears in moulded Hostaform®. . Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Moulded HOSTAFORM® C to DIN 3962/63/67 Grade 12. 20° P.A

Hostaform Spur Gear Mod 2 16T, With Hub (WPS20/16B)

Part No.7701-639
CodeWPS20/16B

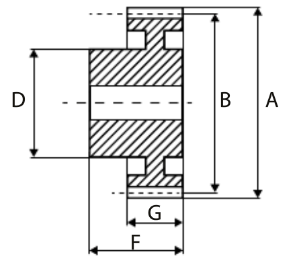

No. of Teeth16
Pitch Ø B32
Bore Ø H98
Hub/Boss Ø D17.5
Outside Ø A36
O/A Width F27
Face Width G15
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
