Metric Spur Gears in moulded Hostaform®. . Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Moulded HOSTAFORM® C to DIN 3962/63/67 Grade 12. 20° P.A
Hostaform Spur Gear Mod 1.25 100T, With Hub (WPS12.5/100B)
Hostaform Spur Gear Mod 1.25 100T, With Hub (WPS12.5/100B)
| Part No. | 7701-547 |
| Code | WPS12.5/100B |
| No. of Teeth | 100 |
| Pitch Ø B | 125 |
| Bore Ø H9 | 12 |
| Hub/Boss Ø D | 24 |
| Outside Ø A | 127.5 |

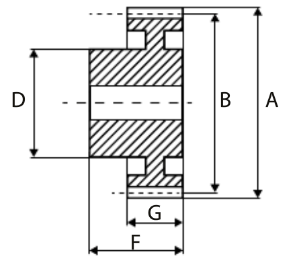

| O/A Width F | 19 |
| Face Width G | 10 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
