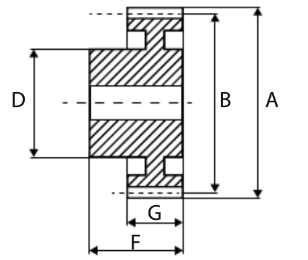

Metric Spur Gears in moulded Hostaform®. . Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Moulded HOSTAFORM® C to DIN 3962/63/67 Grade 12. 20° P.A
Hostaform Spur Gear Mod 1 40T, With Hub (WPS10/40B)
Hostaform Spur Gear Mod 1 40T, With Hub (WPS10/40B)
| Part No. | 7701-528 |
| Code | WPS10/40B |
| No. of Teeth | 40 |
| Pitch Ø B | 40 |
| Bore Ø H9 | 8 |
| Hub/Boss Ø D | 18 |
| Outside Ø A | 42 |
| O/A Width F | 18 |
| Face Width G | 9 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
