Standards: to DIN 3962, 3963, 3967 Grade 12. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. White HOSTAFORM® C

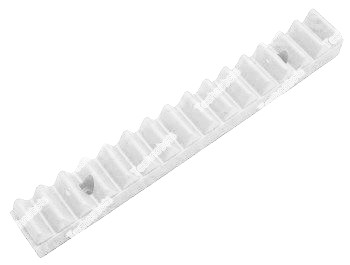

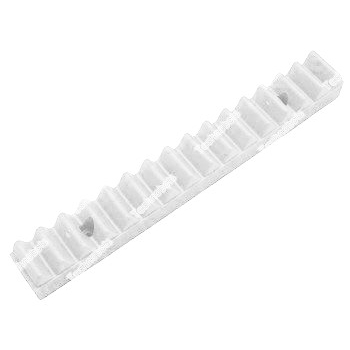

Hostaform Mod 1.25 Rack 10x11x250mm (WPR12.5/10/.25)
Hostaform Mod 1.25 Rack 10x11x250mm (WPR12.5/10/.25)
| Part No. | 7700-105 |
| Code | WPR12.5/10/.25 |
| Pitch module | 1.25 |
| Width B | 10 |
| Overall height A | 11 |
| Height to pitch line hp | 9.75 |
| Length L | 250 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
