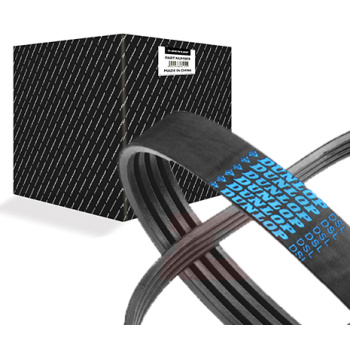

Dunlop 8V3350/BAND Wrapped Banded V-Belt
Banded V-Belts & Wedge Belts are sets of belts assembled together. Besides incorporating all of the features of standard belts, the belts are joined together to form a band gives the following additional features; no flapping during abrupt load variations, no possibility of turning over and are ideal in high vibration applications.
Specification
- Code: 8V3350/BAND
- Manufacturer: Dunlop
- Width (mm): 25
- Depth (mm): 23
- Outside length (mm): -
- Pitch length (mm): 8509
- Pitch Length (in): 335
- Inside length (mm): -
- Inside length (in):
- Pitch between bands (mm banded type only): 28.6
