Drivelock® 95 For connection of coaxial shafts, offer medium torques 200 to 4280 Nm and are available in bores from 17 to 80mm
Drivelock 95 48x90 mm (DL95/48)
Drivelock 95 48x90 mm (DL95/48)

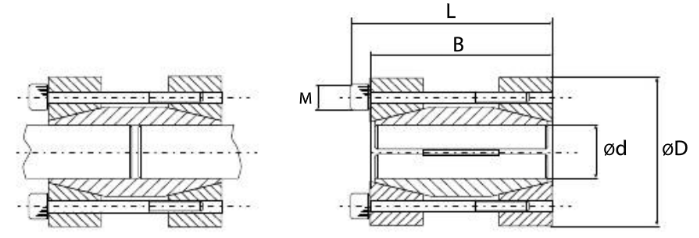

| Part No. | 7931-215 |
| Code | DL95/48 |
| d (mm) | 48 |
| D (mm) | 90 |
| B (mm) | 85 |
| L (mm) | 93 |
| M (mm) | M8 |
| Ts (Nm) | 41 |
| T (Nm) | 1600 |
| F (kN) | 67 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
