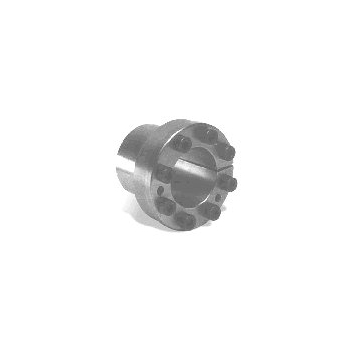

Drivelock® 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mm
Drivelock 80 8x15mm (DL80/8)
Drivelock 80 8x15mm (DL80/8)
| Part No. | 7931-130 |
| Code | DL80/8 |
| d (mm) | 8 |
| D (mm) | 15 |
| D1 (mm) | 27 |
| A (mm | 12 |
| B (mm | 25.5 |
| L (mm | 29.5 |
| M (mm) | M4 |
| Ts (Nm) | 5 |
| T( Nm) | 28 |
| F (kN) | 7 |
| p (N/mm2) | 104 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
