Drivelock® 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mm

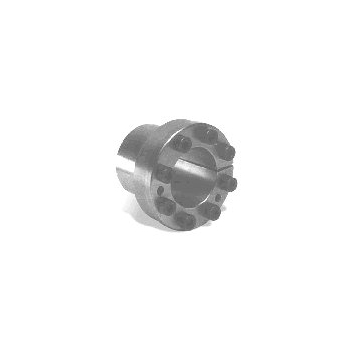

Drivelock 80 70x90mm (DL80/70)
Drivelock 80 70x90mm (DL80/70)
Part No. | 7931-128 |
Code | DL80/70 |
d (mm) | 70 |
D (mm) | 90 |
D1 (mm) | 119 |
A (mm | 65 |
B (mm | 96.5 |
L (mm | 106.5 |
M (mm) | M10 |
Ts (Nm) | 83 |
T( Nm) | 4755 |
F (kN) | 136 |
p (N/mm2) | 61 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
