Drivelock® 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mm

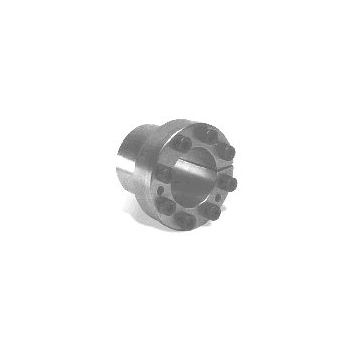

Drivelock 80 50x65mm (DL80/50)
Drivelock 80 50x65mm (DL80/50)
| Part No. | 7931-123 |
| Code | DL80/50 |
| d (mm) | 50 |
| D (mm) | 65 |
| D1 (mm) | 92 |
| A (mm | 45 |
| B (mm | 71 |
| L (mm | 79 |
| M (mm) | M8 |
| Ts (Nm) | 41 |
| T( Nm) | 1902 |
| F (kN) | 76 |
| p (N/mm2) | 68 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
