Drivelock® 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mm

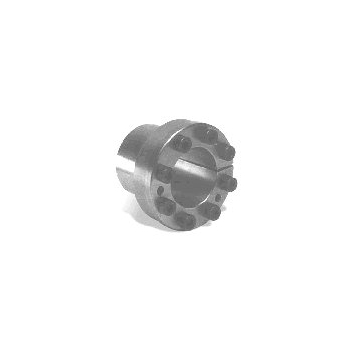

Drivelock 80 38x50mm (DL80/38)
Drivelock 80 38x50mm (DL80/38)
Part No. | 7931-118 |
Code | DL80/38 |
d (mm) | 38 |
D (mm) | 50 |
D1 (mm) | 72 |
A (mm | 31.5 |
B (mm | 52.5 |
L (mm | 58.5 |
M (mm) | M6 |
Ts (Nm) | 17 |
T( Nm) | 781 |
F (kN) | 43 |
p (N/mm2) | 68 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
