Drivelock® 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mm
Drivelock 80 28x39mm (DL80/28)
Drivelock 80 28x39mm (DL80/28)

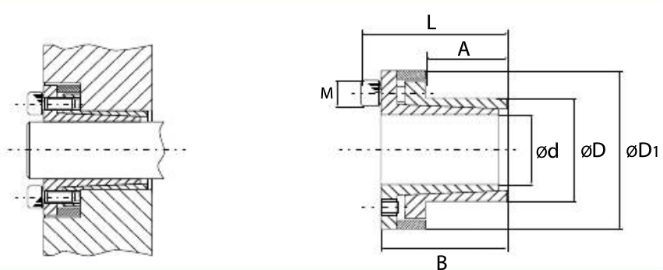

| Part No. | 7931-114 |
| Code | DL80/28 |
| d (mm) | 28 |
| D (mm) | 39 |
| D1 (mm) | 61 |
| A (mm | 25.5 |
| B (mm | 46.5 |
| L (mm | 52.5 |
| M (mm) | M6 |
| Ts (Nm) | 17 |
| T( Nm) | 460 |
| F (kN) | 32 |
| p (N/mm2) | 90 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
