Drivelock® 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mm

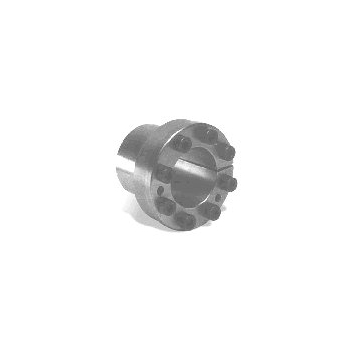

Drivelock 80 19x27mm (DL80/19)
Drivelock 80 19x27mm (DL80/19)
Part No. | 7931-109 |
Code | DL80/19 |
d (mm) | 19 |
D (mm) | 27 |
D1 (mm) | 49 |
A (mm | 19 |
B (mm | 39.5 |
L (mm | 45.5 |
M (mm) | M6 |
Ts (Nm) | 17 |
T( Nm) | 207 |
F (kN) | 21 |
p (N/mm2) | 119 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
