Drivelock® 71 Bushes are self centering, offer high torques 294 to 33600 Nm and are available in bores from 19 to 180mm
Drivelock 71 85x125mm (DL71/85)
Drivelock 71 85x125mm (DL71/85)

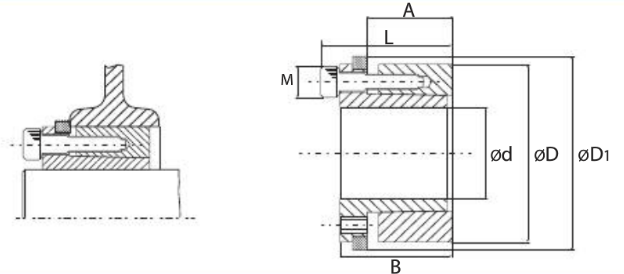

| Part No. | 7931-023 |
| Code | DL71/85 |
| d (h8) (mm) | 85 |
| D (mm) | 125 |
| D1 (mm) | 131 |
| M (mm) | M10 |
| L (mm) | 72 |
| B (Nm) | 62 |
| Ts (Nm) | 83 |
| T (Nm) | 8002 |
| F (kN) | 264 |
| P (N/mm2) | 157 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
