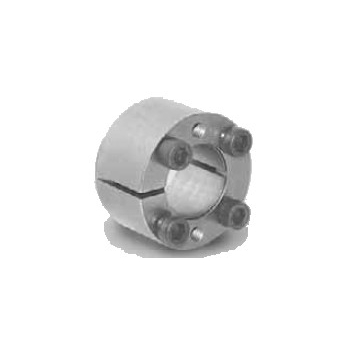

Drivelock® 61 Bushes are self centering, offer medium torques 5 to 1900 Nm and are available in bores from 5 to 50mm
Drivelock 61 6.35x16mm (DL61/6.35)
Drivelock 61 6.35x16mm (DL61/6.35)

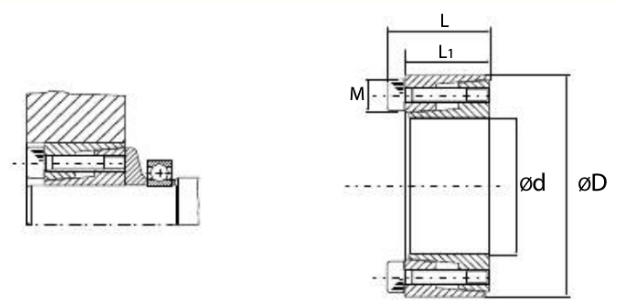

| Part No. | 7930-823 |
| Code | DL61/6.35 |
| d (h8) (mm) | 6.35 |
| D (mm) | 16 |
| L1 (mm) | 11 |
| L (mm) | 13.5 |
| B (mm) | M2.5 |
| Ts Nm | 1.2 |
| T Nm | 6 |
| F kN | 2 |
| p N/mm2 | 55 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
