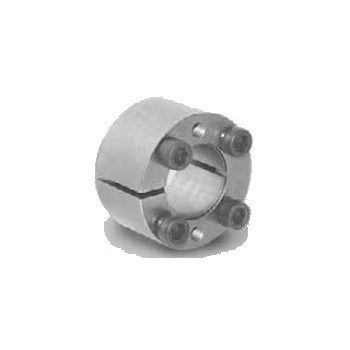

Drivelock® 61 Bushes are self centering, offer medium torques 5 to 1900 Nm and are available in bores from 5 to 50mm
Drivelock 61 45x75mm (DL61/45)
Drivelock 61 45x75mm (DL61/45)
Part No. | 7930-819 |
Code | DL61/45 |
d (h8) (mm) | 45 |
D (mm) | 75 |
L1 (mm) | 36 |
L (mm) | 44 |
B (mm) | M8 |
Ts Nm | 40 |
T Nm | 1300 |
F kN | 55 |
p N/mm2 | 90 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
