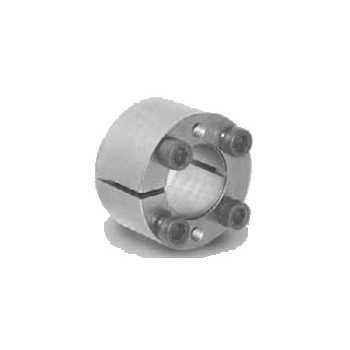

Drivelock® 61 Bushes are self centering, offer medium torques 5 to 1900 Nm and are available in bores from 5 to 50mm
Drivelock 61 30x55mm (DL61/30)
Drivelock 61 30x55mm (DL61/30)
Part No. | 7930-814 |
Code | DL61/30 |
d (h8) (mm) | 30 |
D (mm) | 55 |
L1 (mm) | 26 |
L (mm) | 32 |
B (mm) | M6 |
Ts Nm | 16.5 |
T Nm | 470 |
F kN | 30 |
p N/mm2 | 95 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
