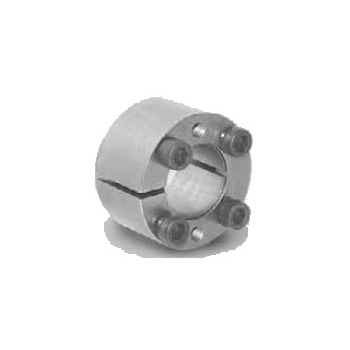

Drivelock® 61 Bushes are self centering, offer medium torques 5 to 1900 Nm and are available in bores from 5 to 50mm
Drivelock 61 16x32mm (DL61/16)
Drivelock 61 16x32mm (DL61/16)
Part No. | 7930-805 |
Code | DL61/16 |
d (h8) (mm) | 16 |
D (mm) | 32 |
L1 (mm) | 17 |
L (mm) | 21 |
B (mm) | M4 |
Ts Nm | 4.9 |
T Nm | 70 |
F kN | 8 |
p N/mm2 | 65 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
