Drivelock® 61 Bushes are self centering, offer medium torques 5 to 1900 Nm and are available in bores from 5 to 50mm

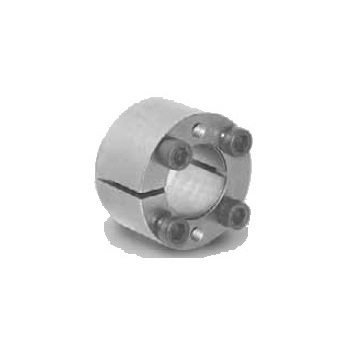

Drivelock 61 12x22mm (DL61/12)
Drivelock 61 12x22mm (DL61/12)
| Part No. | 7930-802 |
| Code | DL61/12 |
| d (h8) (mm) | 12 |
| D (mm) | 22 |
| L1 (mm) | 13 |
| L (mm) | 15.5 |
| B (mm) | M2.5 |
| Ts Nm | 1.2 |
| T Nm | 20 |
| F kN | 3 |
| p N/mm2 | 50 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
