Drivelock® 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mm
Drivelock 50 42x48 mm (DL50/42)
Drivelock 50 42x48 mm (DL50/42)
Part No. | 7930-715 |
Code | DL50/42 |

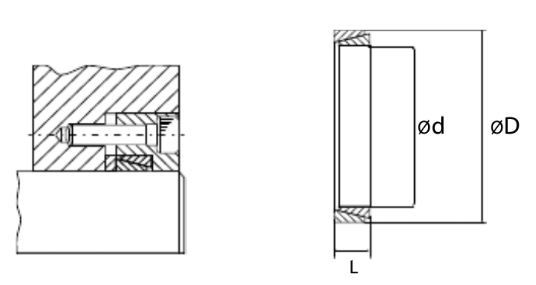

d (mm) | 42 |
D (mm) | 48 |
L (mm) | 8 |
T | 235 |
F (Nm) | 11.22 |
P N/mm2 | 95 |
Fa kN | 66 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
