Drivelock® 45 Bushes are not self centering, offer medium torques 190 to 4800 Nm and are available in bores from 18 to 80mm
Drivelock 45 18x40 mm (DL45/18)
Drivelock 45 18x40 mm (DL45/18)

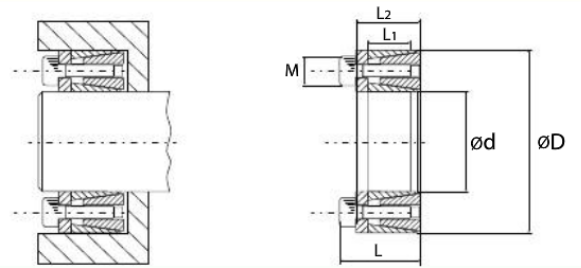

| Part No. | 7930-601 |
| Code | DL45/18 |
| d (h8)(mm) | 18 |
| D(mm) | 40 |
| L2(mm) | 18.5 |
| L(mm) | 24.5 |
| L1(mm) | 12 |
| M (screws) | M6 |
| Ts(Nm) | 12 |
| T(Nm) | 190 |
| F(kN) | 260 |
| p(N/mm 2) | 120 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
