Drivelock® 19 Bushes are self centering, offer high torques 170 to 39000 Nm, external clamping and are available in bores from 24 to 165mm

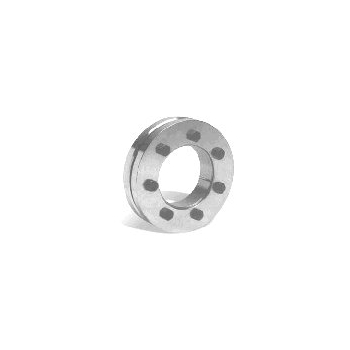

Drivelock 19 68x115mm (DL19/68)
Drivelock 19 68x115mm (DL19/68)
| Part No. | 7930-408 |
| Code | DL19/68 |
| d2 (mm) | 68 |
| D (mm) | 115 |
| d1 (mm) | 50 |
| M(Screws) | M6 |
| I (mm) | 23 |
| B (mm) | 30.5 |
| L (mm) | 34.5 |
| Ts Nm | 12 |
| T Nm | 2000 |
| F kN | 97 |
| Part No. | 7930-408 |
| Code | DL19/68 |
| d2 (mm) | 68 |
| D (mm) | 115 |
| d1 (mm) | 55 |
| M(Screws) | M6 |
| I (mm) | 23 |
| B (mm) | 30.5 |
| L (mm) | 34.5 |
| Ts Nm | 12 |
| T Nm | 2500 |
| F kN | 106 |
| Part No. | 7930-408 |
| Code | DL19/68 |
| d2 (mm) | 68 |
| D (mm) | 115 |
| d1 (mm) | 60 |
| M(Screws) | M6 |
| I (mm) | 23 |
| B (mm) | 30.5 |
| L (mm) | 34.5 |
| Ts Nm | 12 |
| T Nm | 3150 |
| F kN | 120 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
