Drivelock® 15 Bushes are self centering, offer high torques 264 to 37000 Nm and are available in bores from 18 to 180mm

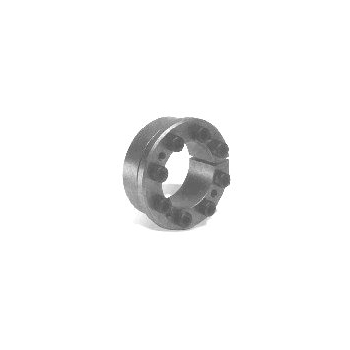

Drivelock 16 95x135 mm (DL16/95)
Drivelock 16 95x135 mm (DL16/95)
| Part No. | 7930-328 |
| Code | DL16/95 |
| d (h8) (mm) | 95 |
| D (mm) | 135 |
| D1 (mm) | 144 |
| M (mm) | M10 |
| L (mm) | 50 |
| B (mm) | 40 |
| A (mm) | 30 |
| Ts (Nm) | 83 |
| T (Nm) | 8190 |
| F (kN) | 172 |
| p N/mm2 | 145 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
