Drivelock® 15 Bushes are self centering, offer high torques 264 to 37000 Nm and are available in bores from 18 to 180mm

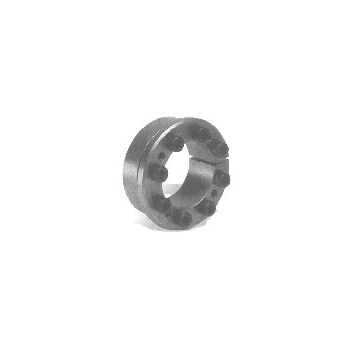

Drivelock 16 70x110mm (DL16/70)
Drivelock 16 70x110mm (DL16/70)
Part No. | 7930-323 |
Code | DL16/70 |
d (h8) (mm) | 70 |
D (mm) | 110 |
D1 (mm) | 119 |
M (mm) | M10 |
L (mm) | 50 |
B (mm) | 40 |
A (mm) | 30 |
Ts (Nm) | 83 |
T (Nm) | 4905 |
F (kN) | 138 |
p N/mm2 | 127 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
