Drivelock® 15 Bushes are self centering, offer high torques 264 to 37000 Nm and are available in bores from 18 to 180mm

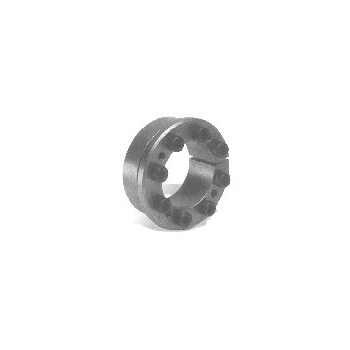

Drivelock 16 38x65mm (DL16/38)
Drivelock 16 38x65mm (DL16/38)
| Part No. | 7930-315 |
| Code | DL16/38 |
| d (h8) (mm) | 38 |
| D (mm) | 65 |
| D1 (mm) | 74 |
| M (mm) | M6 |
| L (mm) | 34 |
| B (mm) | 28 |
| A (mm) | 22 |
| Ts (Nm) | 17 |
| T (Nm) | 892 |
| F (kN) | 47 |
| p N/mm2 | 112 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
