Drivelock® 15 Bushes are self centering, offer high torques 264 to 37000 Nm and are available in bores from 18 to 180mm

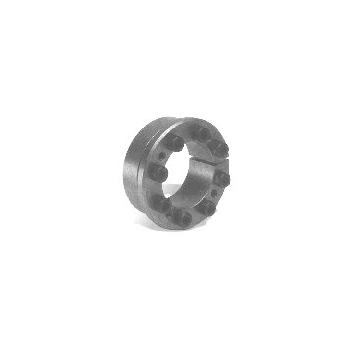

Drivelock 16 25x50 mm (DL16/25)
Drivelock 16 25x50 mm (DL16/25)
| Part No. | 7930-310 |
| Code | DL16/25 |
| d (h8) (mm) | 25 |
| D (mm) | 50 |
| D1 (mm) | 59 |
| M (mm) | M6 |
| L (mm) | 34 |
| B (mm) | 28 |
| A (mm) | 22 |
| Ts (Nm) | 17 |
| T (Nm) | 441 |
| F (kN) | 35 |
| p N/mm2 | 107 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
