Drivelock® 15 Bushes are self centering, offer medium torques 282 to 2700 Nm and are available in bores from 14 to 50mm
Drivelock 15 38x80mm (DL15/38X80)
Drivelock 15 38x80mm (DL15/38X80)

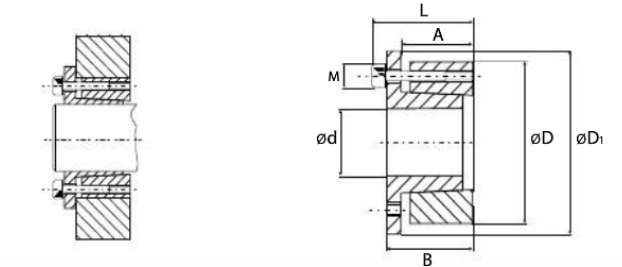

| Part No. | 7930-221 |
| Code | DL15/38X80 |
| d (h8) (mm) | 38 |
| D (mm) | 80 |
| D1 (mm) | 87 |
| M (mm) | M8 |
| L (mm) | 41 |
| B (mm) | 33 |
| A (mm) | 25 |
| Ts (Nm) | 41 |
| T (Nm) | 1370 |
| F (kN) | 63 |
| p N/mm2 | 120 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
